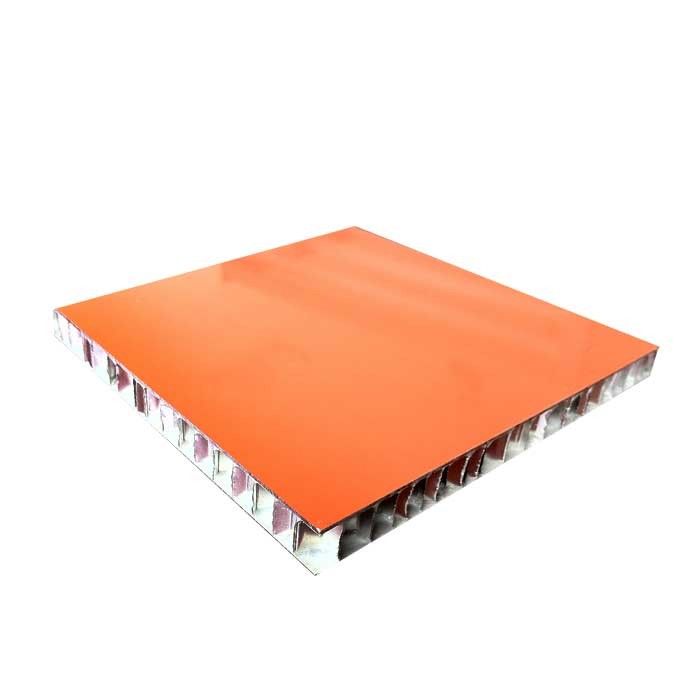

Mill Finish Aluminum Honeycomb Substrate Panels For Light Weight Stone
Definition
The surface of WDF aluminum honeycomb panels are made of aluminum alloy plates roller coated with PVDF while in the milddle
are the aluminum honeycombs which meets the international earonautical standards.The structural honeycomb core provides strength
and consistent rigidity at a very low desity; When bonded to similarly lightweight facings. Every honeycomb cell wall acts like the web
of an I-Beam, forming an extremely strong and rigid lightweight composite panel.
WDF honeycomb panel is an aluminum sandwich-type panel with high rigidity and extremely low weight. It is an ideal material for various applications in architecture, transport, display or industrial production.

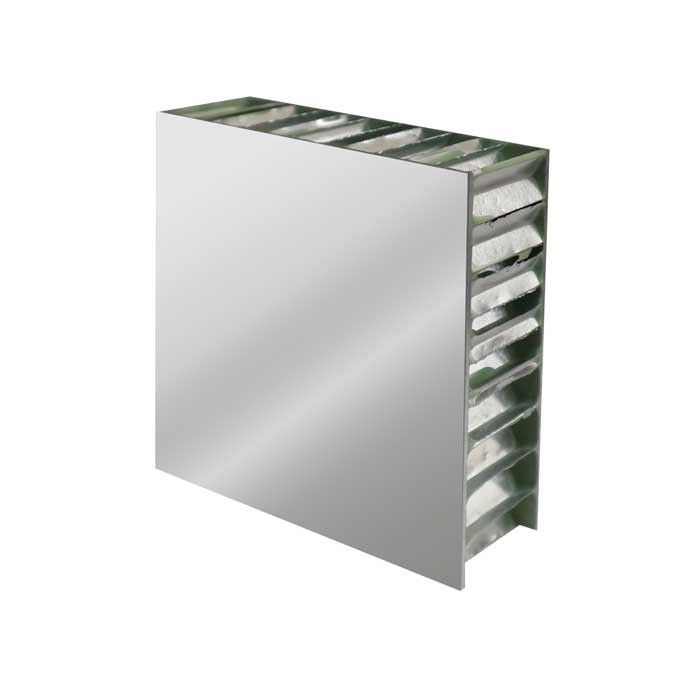

Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin
At a Glance:
| Material | Aluminum Alloy (3003/5052, etc.) |
| Regular Size (W*L*T) | 1,220*2,440/3,000*6 mm |
| Max. Size(W*L*T) | 2,000*10,000*200 mm |
| Regular Thickness | 10/12/15/20/25 mm |
| Available Thickness | 6-200 mm |
| Regular Surface Treatment | PVDF,PE,Powder Coating, Anodized, etc. |
| Perforation | Yes (customized) |
| Applications | Wall cladding(exterior & interior), ceiling & flooring, cleanroom, partitions, ship hull, vehicles, tunnel, etc. |
| Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
| Suggestion: | |
| 1. For interior wall (PE coating): range from 8mm to 20mm (top plate:1.0mm; bottom plate: 0.7/0.8mm) | |
| 2. For exterior wall (PVDF coating): 15mm, 18mm, 25mm (top plate: from 1.0mm to 1.5mm; bottom plate: from 0.7mm to 1.0mm) | |
Features:
- Light
- Good rigidity
- Flat and straight
- Good at wind-proof and pressing-proof
- Fire-proof
- Easy to process and shape
-Good at weather-proof
- Good intensity
- Good at sound and heat insulation
- Good at shock-resistance
- Green building material
- Energy-saving and environmental protection
| Physical Property | ||
| Item | Unit | T=10mm |
| Weight | kg/m3 | kg/m3 |
| Thermal expansivety | 23x10-6 | |
| Heat conduction ratio | /ºC | 1.7 |
| Cimbustion | W/MºC | Flame Resist / Class B1 |
| Presssing-proof | 1.72 | |
| Pulling-proof strong modulo of the surface | Mpa | 20-50 |
| Bending protracting ratio | Gpa | 5% |
Application
Aluminum honeycomb panel has widely used in facade cladding industry, interior decoration, ceiling, partition,
furniture industry, ship hull building and ship decoration, vehicle building and so on.
