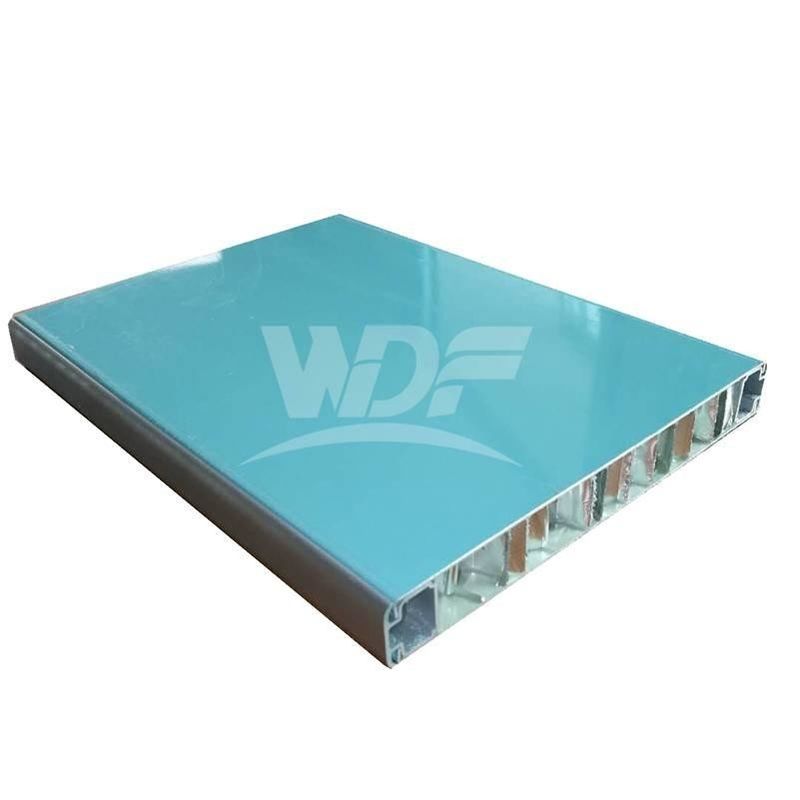

High Strength Aluminum Honeycomb Panel 10mm 15mm 20mm for outdoor usage
Definition
Aluminum Honeycomb Panel has initially been an advanced composite material in the Aerospace Industry. Due to its lightweight
and durable properties, it has seen increased usage in modern architecture in recent years.

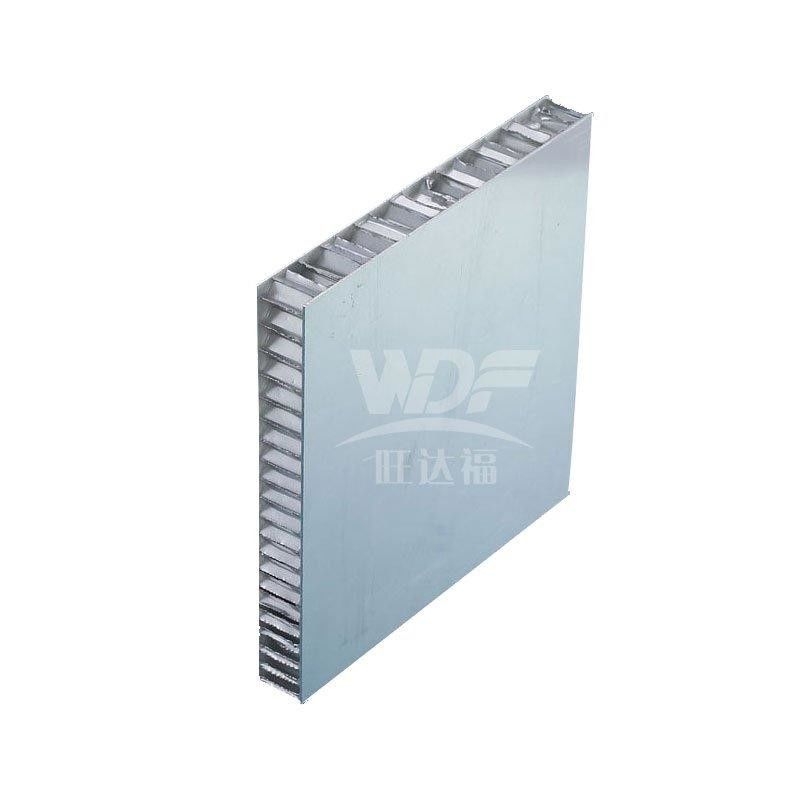

The top and bottom surfaces of the sandwich honeycomb panel are made of two sheets of aluminum alloy, while the center part of
the sandwich panel is Aluminum Honeycomb Core. The honeycomb geometry gives the structure lightweight, rigidity and strength,
perfect for building facades.
Structure
Size:
| Length | Upto 10m |
| Width | Upto 2200mm |
| Thickness | From 4 to 100mm |
|
Typical 5.0mm 10mm 15mm 20mm 25mm
|
|
| Other Special size please contact us for discussion | |
Features:
- Light
- Good rigidity
- Flat and straight
- Good at wind-proof and pressing-proof
- Fire-proof
- Easy to process and shape
-Good at weather-proof
- Good intensity
- Good at sound and heat insulation
- Good at shock-resistance
- Green building material
- Energy-saving and environmental protection
| Physical Property | ||
| Item | Unit | T=10mm |
| Weight | kg/m3 | kg/m3 |
| Thermal expansivety | 23x10-6 | |
| Heat conduction ratio | /ºC | 1.7 |
| Cimbustion | W/MºC | Flame Resist / Class B1 |
| Presssing-proof | 1.72 | |
| Pulling-proof strong modulo of the surface | Mpa | 20-50 |
| Bending protracting ratio | Gpa | 5% |
Application
Exterior wall, interior wall, cleanroom, ceiling, office cubicles, washroom cubicles, travel trailer marine vessels
interior decoration, interactive whiteboard, door and etc.
